Product Details
image_pdf

Additional information

Power (W/m)

18.7

Color

RGB-W

Beam Angle

120˚

Luminaire Lumen Output (lm/m)

R: 65, G: 144, B: 26, W: 177-248

IP Rating

IP67

Minimum Bending Radius (cm)

10

Maximum Length (m)

8

Cutting pitch (mm)

71.4

Pixel/m

10

Voltage (V)

DC24V

Ambient Temperature

-40˚C … +65˚C

Dimming Options

SPI

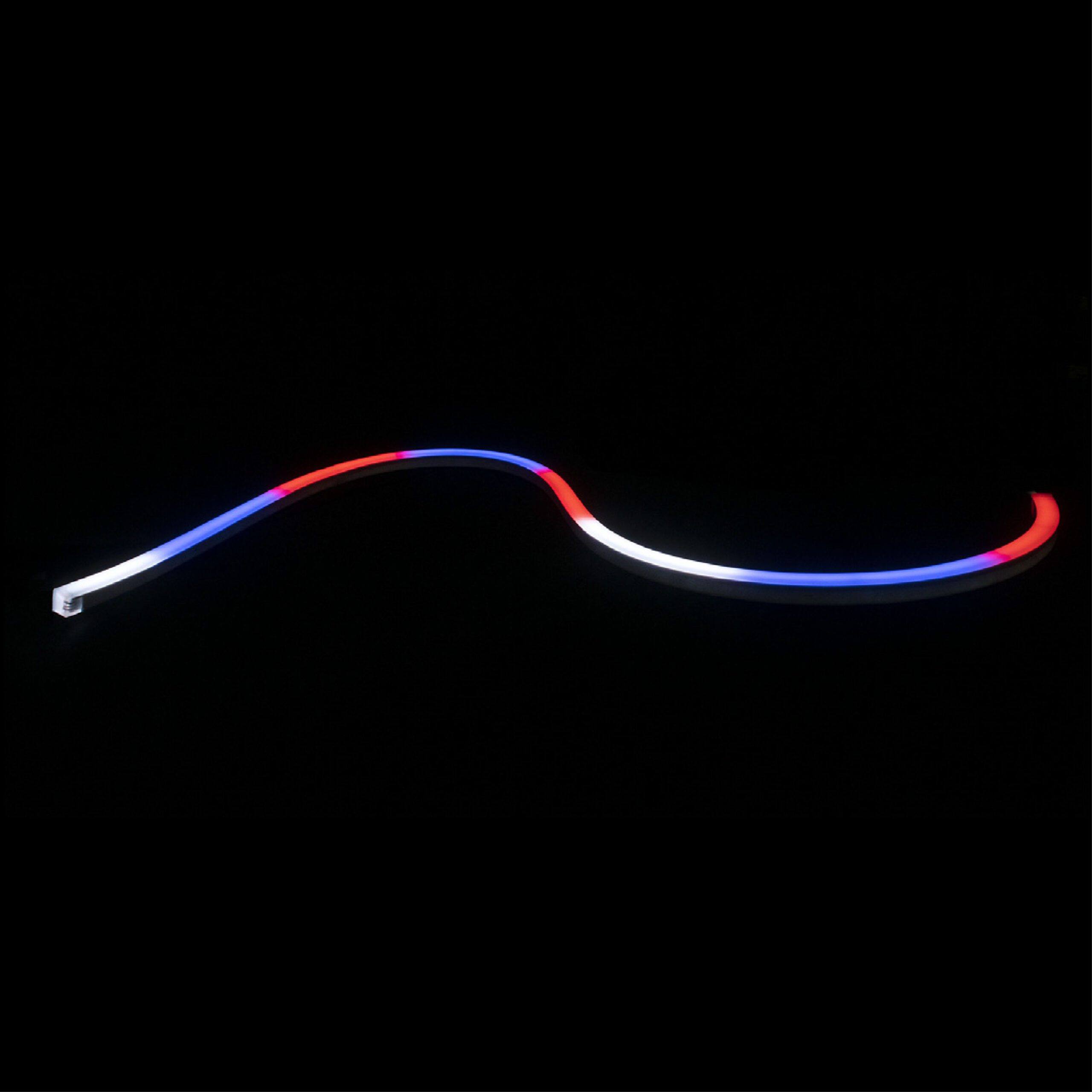

Auras Outdoor Pixel SPI-Controlled RGB-W – Horizontal ORS18

  • Excellent thermal dissipation encapsulated with high performance grade silicone material with operating temperature up to maximum ta 65°C
  • Designed to be UV and corrosion resistant; compliant to UL 94 V-0 flame-retardant standard
  • Seamless with no dark spot even at the terminals
  • Lifetime: 50,000 hours
  • Direct Artnet-to-SPI interlace; 2048 channels per SPI output line; synchronized Artnet data through ArtSync
  • Linear daisy-chain of Artnet-to-SPI interfaces of up to 36 controllers per line
  • Maximum operational frame rate: 48fps
  • Up to 102m of Contour Light daisy-chained data lines per controller
  • Up to 50m input shield twisted pair data cable from controller to Contour Light
